Unterlegscheibe

Carbon Steel Plain Washer PTFE Coated in Blue with Grade 4.8-12.9 and ISO/ASME/DIN/JIS/GB Standard

Alle Kategorien

Selbstschneidende Metallschrauben

Druckbehälter richtete Enden an

Galvanisiertes nahtloses Stahlrohr

Druckfeder

Kontakt mit uns

Fiona Hou

flrs@mechanical-fasteners.com

13384956386

Kontaktieren Sie uns jetzt

Carbon Steel Plain Washer PTFE Coated in Blue with Grade 4.8-12.9 and ISO/ASME/DIN/JIS/GB Standard

Markenbezeichnung:	FLRS or　OEM
Modellnummer:	FLRS-W015
MOQ:	100 Stück
Verpackungsdetails:	Kartonsperrholzkisten/Sperrholzpaletten
Zahlungsbedingungen:	T/T, L/C, Westverband, paypal

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

CHINA

Zertifizierung:

ISO9001

Material:

Kohlenstoffstahl

Standard:

ISO/ASME/DIN/JIS/GB

Größe:

Standard oder angepasst

Grad:

4,8,6,8,8,8,10,9,12,9

Beenden:

/ Ptfe

Bolzen und Muttern

Wärmebehandlung:

Tempering, Verhärtung, Spheroidisierung, Stresslinderung

Herstellungsprozess:

Lattenbearbeitung, CNC -Bearbeitung, lineares Schneiden, Stempelbearbeitung

Versorgungsmaterial-Fähigkeit:

100 tons/Monat

Hervorheben:

Grade 4.8-12.9 Plain Washer

Blue Finish Flat Washer

ISO/ASME/DIN/JIS/GB Standard Carbon Steel Washer

Beschreibung des Produkts

Carbon Steel Plain Washer PTFE Coated in Blue

The plain washer, also called flat washer, is primarily stamped from an iron plate and typically shaped as a flat disc with a central hole.

Basic Information About Plain Washers

Plain washers are thin components of various shapes used to reduce friction, prevent leakage, isolate components, prevent loosening, or distribute pressure. These versatile parts are manufactured from different materials and serve multiple functions in various structures.

Threaded fasteners have material and process limitations that prevent large bearing surfaces. Washers help reduce compressive stress on bearing surfaces and protect connected parts. Special washers like spring washers and lock washers prevent loosening of connections.

Plain washers primarily reduce compressive force. When tightening axial force is substantial, washers may deform. This can be addressed by using harder materials or increasing hardness.

US Standard Specifications for Flat Washers

Specification	Minor Diameter (mm)	Outside Diameter (mm)	Thickness Tolerance (mm)	Thickness Range (mm)
USS 3/16	6.22～6.73	14.15～14.66	0.91～1.65	0.91～1.40 1.40～1.65
USS 1/4	7.80～8.31	18.47～19.02	1.30～2.03	1.30～1.65 1.65～2.03
USS 5/16	9.40～9.91	22.05～22.99	1.63～2.64	1.63～2.20 2.20～2.64
USS 3/8	11.00～11.51	25.22～26.16	1.63～2.64	1.63～2.20 2.20～2.64
USS 7/16	12.57～13.08	31.57～32.51	1.63～2.64	1.63～2.20 2.20～2.64
USS 1/2	14.15～14.60	34.75～35.69	2.18～3.35	2.18～2.70 2.70～3.00 3.00～3.35
USS 5/8	17.30～18.24	44.27～45.21	2.74～4.06	2.74～3.20 3.20～3.60 3.60～4.06

Functions of Plain Washers

Increase contact area between bolts and machinery
Prevent surface damage during spring washer unloading
Proper installation requires spring washer between plain washer and nut, with plain washer against machine surface

Application Range

Machinery and automotive industries
Road, bridge, and tunnel construction
Urban railway systems and high-speed railways
Watercraft, thermal power, wind power, and nuclear power
Petrochemical, aerospace, and steel roof constructions

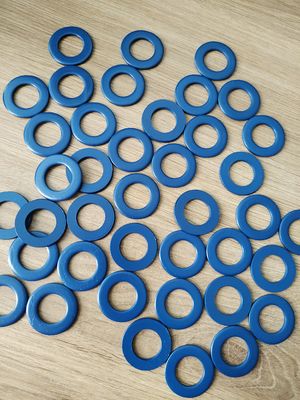

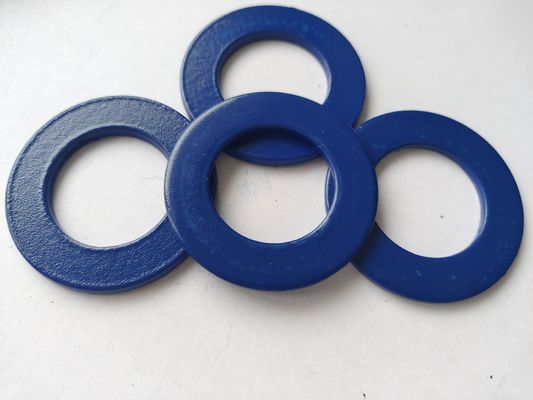

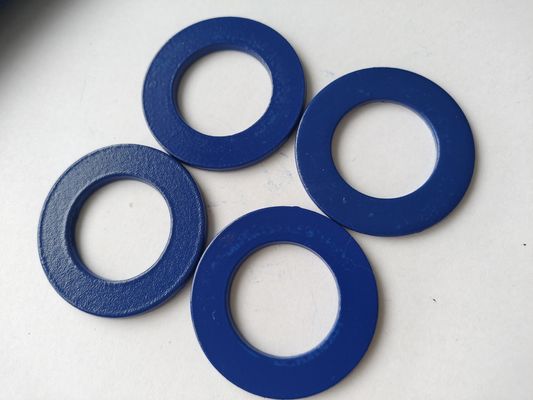

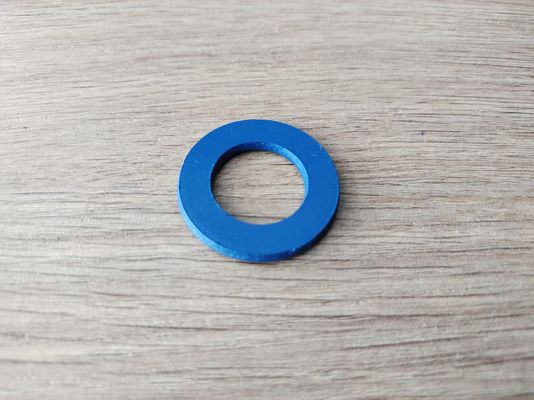

Product Images
